Mesin Bender Otomatis Multi-Fungsi (Broach, Nick)

Mesin Bender Otomatis Multi-Fungsi (Broach, Nick) kalebu fungsi: Mlengkung, Bridge, Broaching, Nicking, Perforation, Hole, Lipping lan Cutting. Didhukung aturan baja kekandelan 0.45,0.53,0.71mm, dhuwur 8-32mm. China Adewo duwe loro pabrik ing China, sing spesialisasine ngembangake lan nggawe peralatan nglereni mati kalebu CNC Laser Cutting Machine, Automatic Bender Machine, Creasing Cutting Machine lan liya-liyane ing Industri Kemasan.

Model:ABM—832C1

Kirim Pitakonan

Deskripsi Produk

Mesin Bender Otomatis Multi-Fungsi

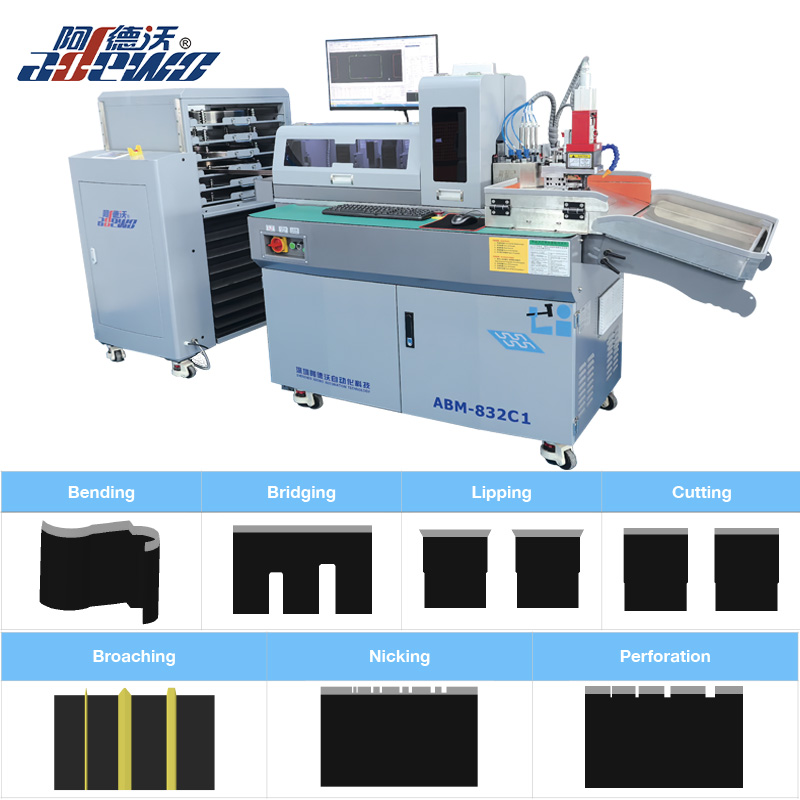

(ABM—832C1)Mesin Bender Otomatis Multi-Fungsi (Broach, Nick)

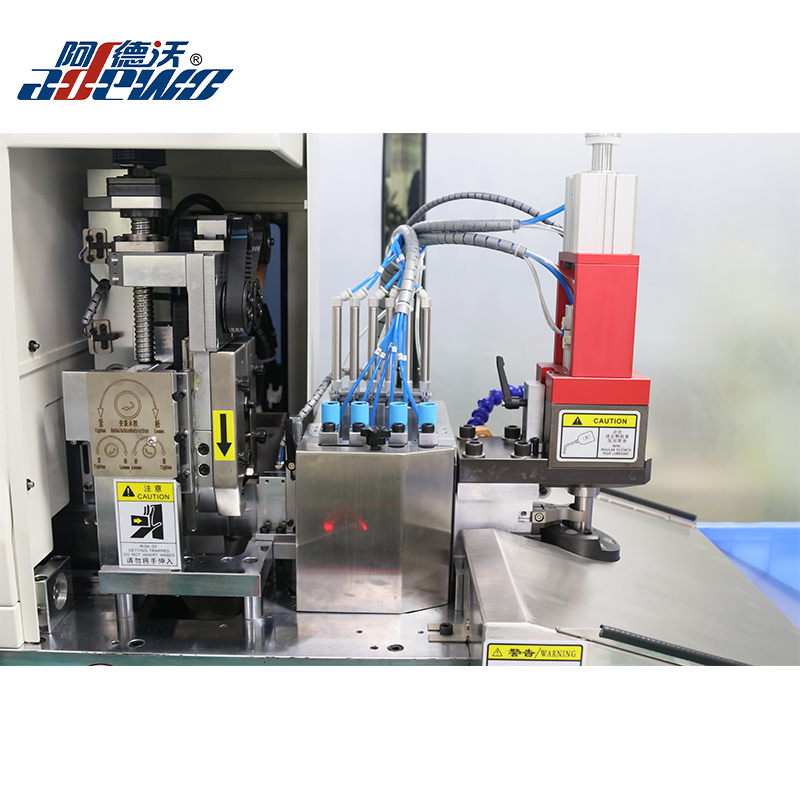

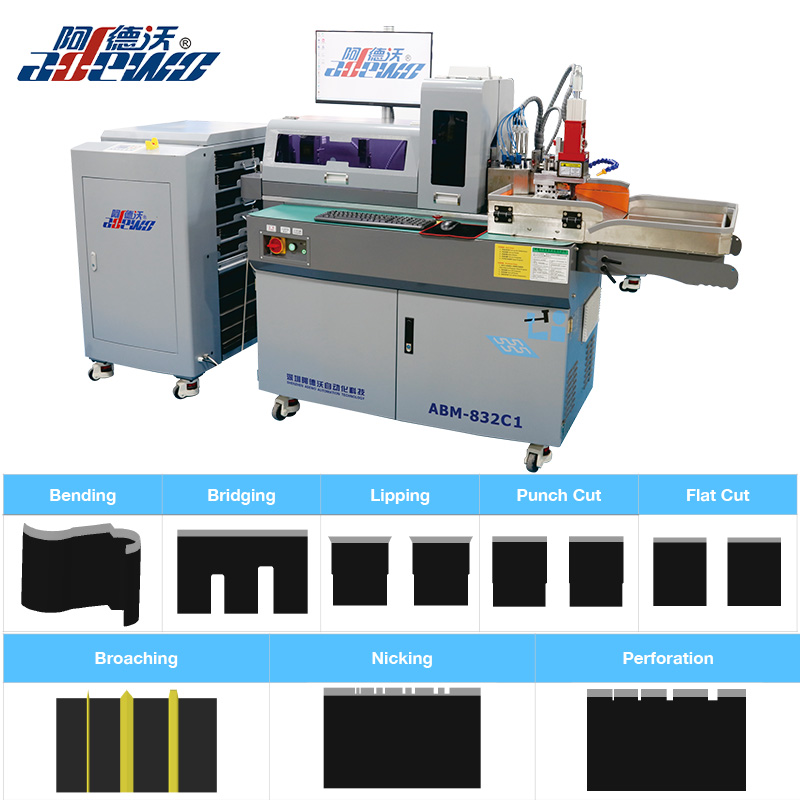

Gambar (ABM—832C1) Mesin Bender Otomatis Multi-Fungsi kanggo referensi:

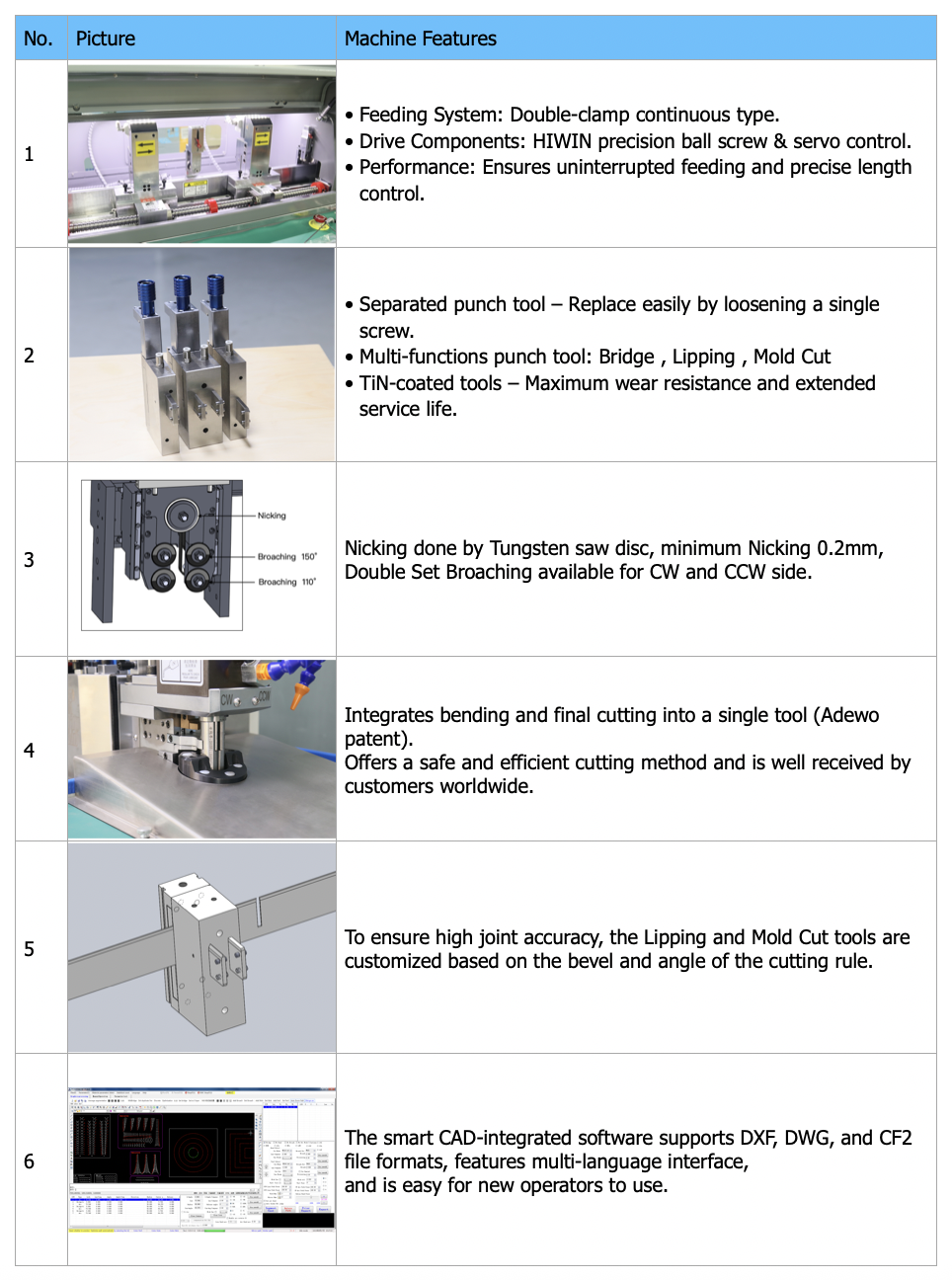

Fitur:

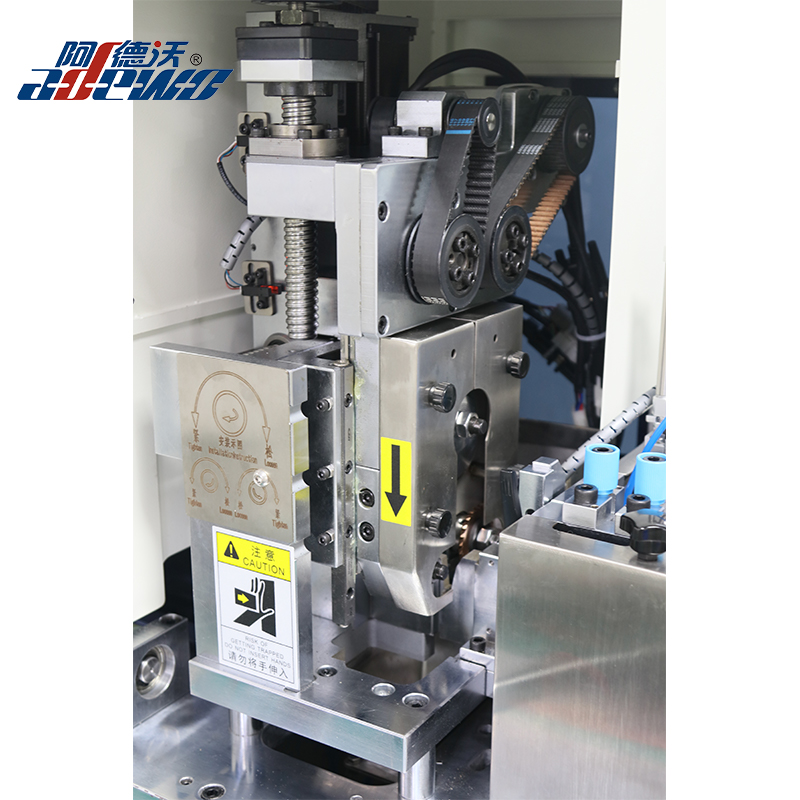

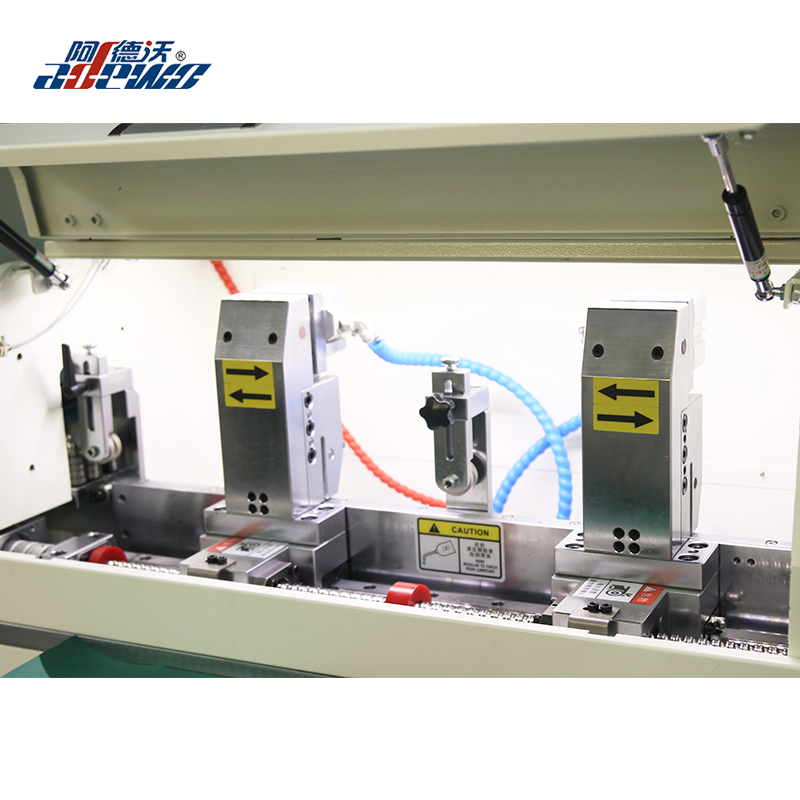

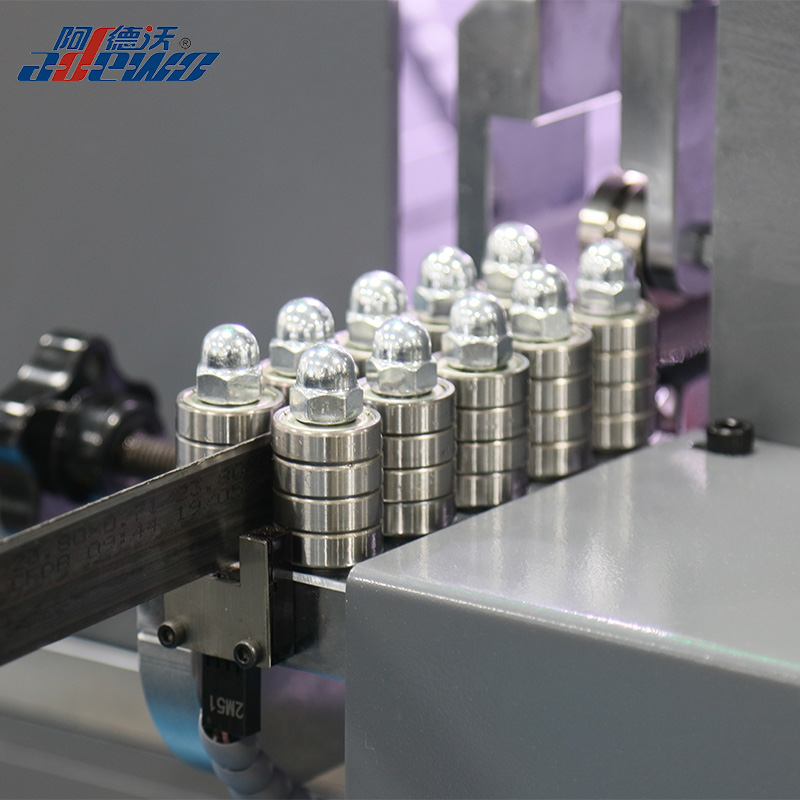

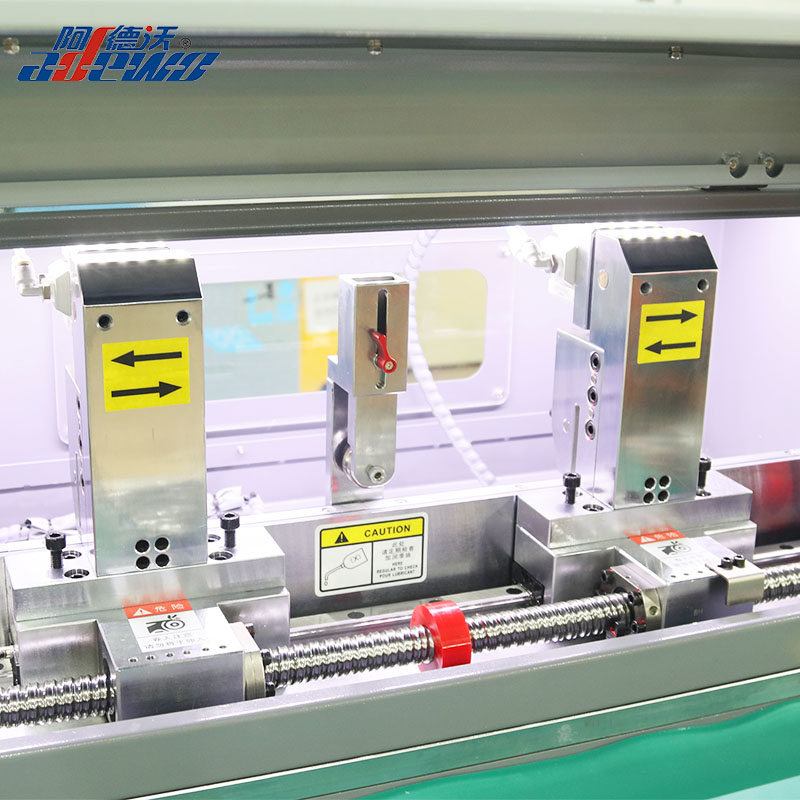

1.Double Clamps + HIWIN screw guide - terus dipakani.Kontrol servo Panasonic - tambah kacepetan dipakani.

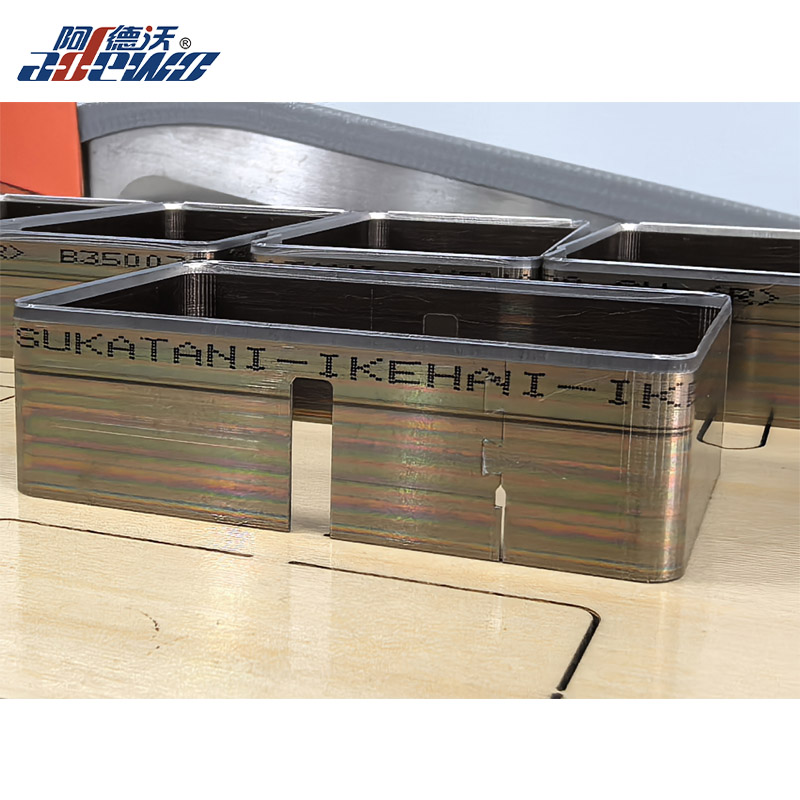

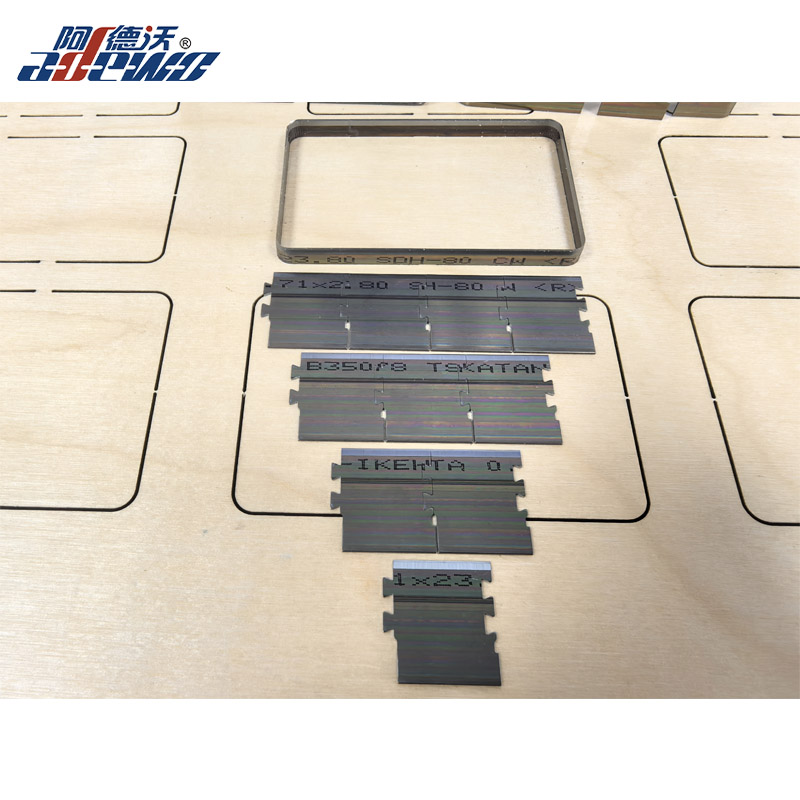

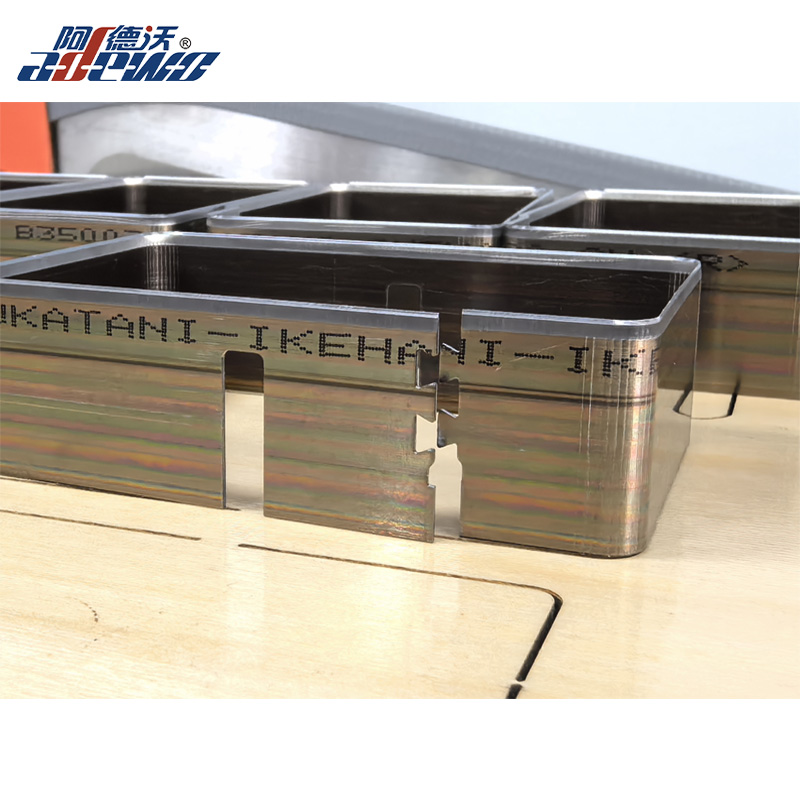

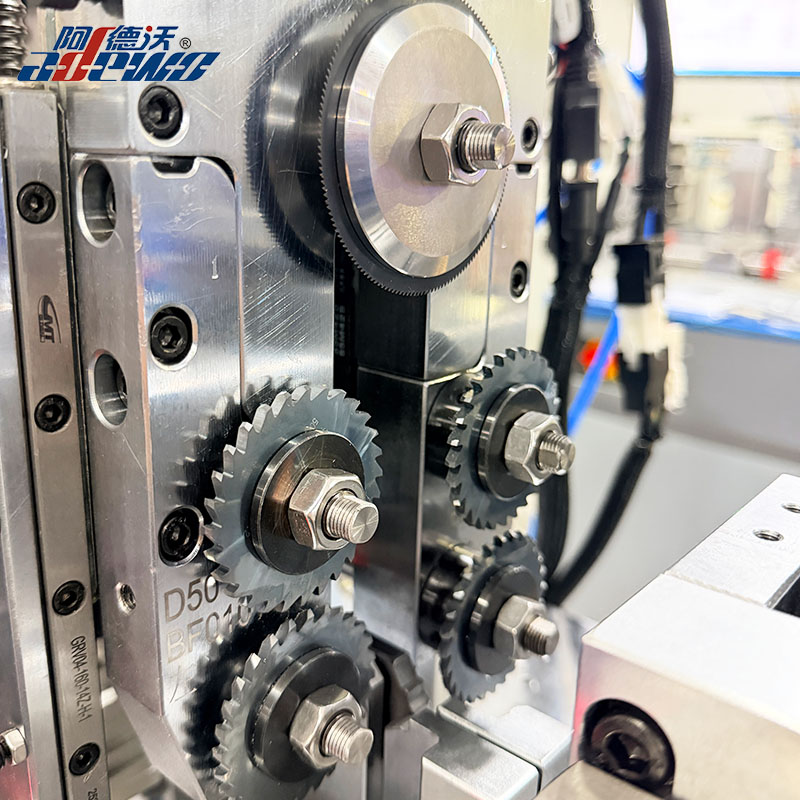

2.Broaching & Nicking - kanggo dhuwur-akurasi nglereni mati. Cocog kanggo papan pemotong sing bentuke kompleks, paket farmasi, paket kotak rokok.

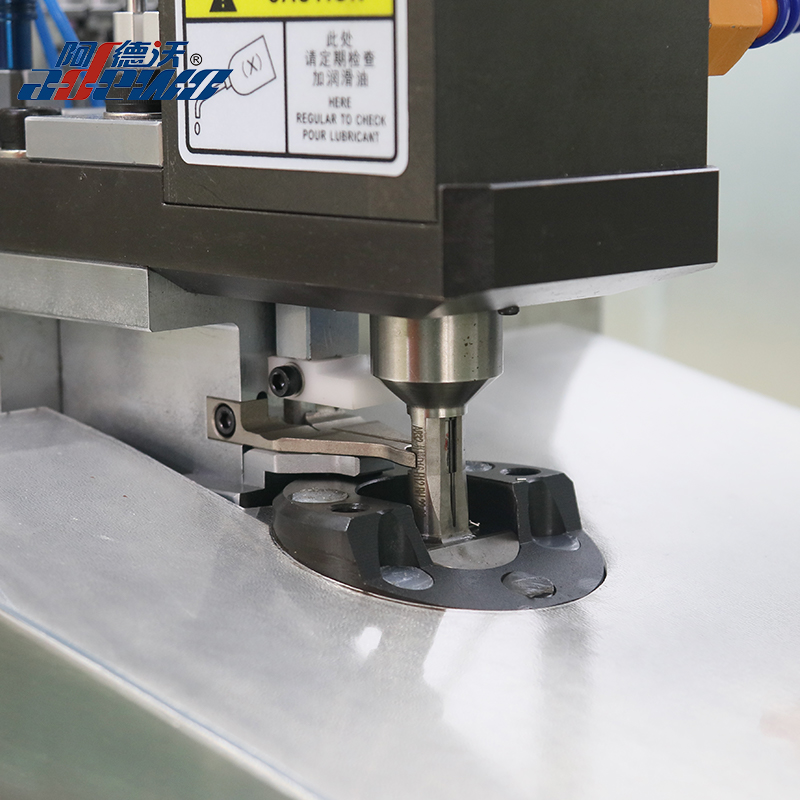

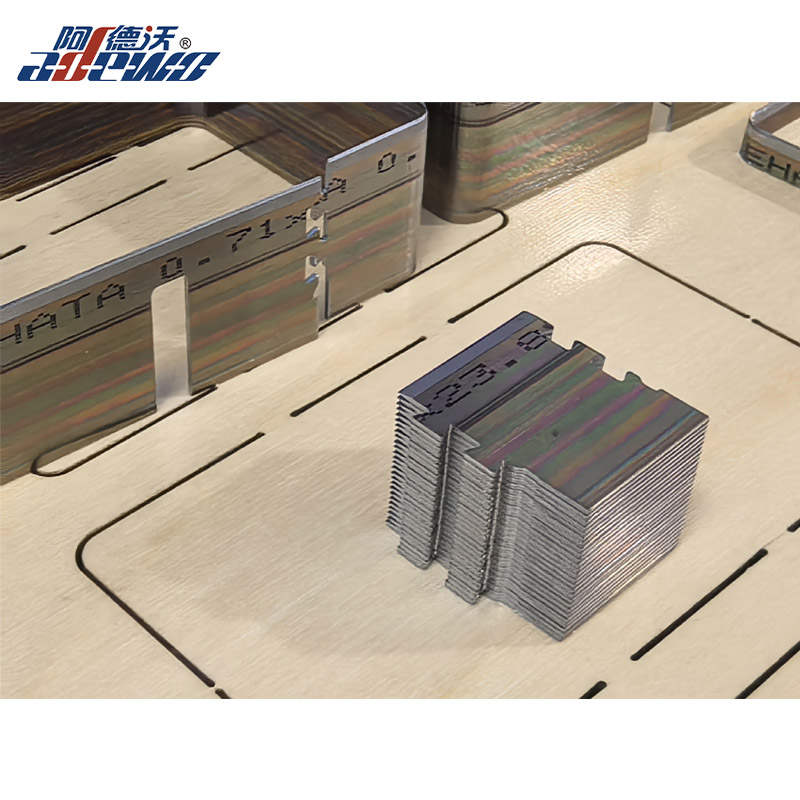

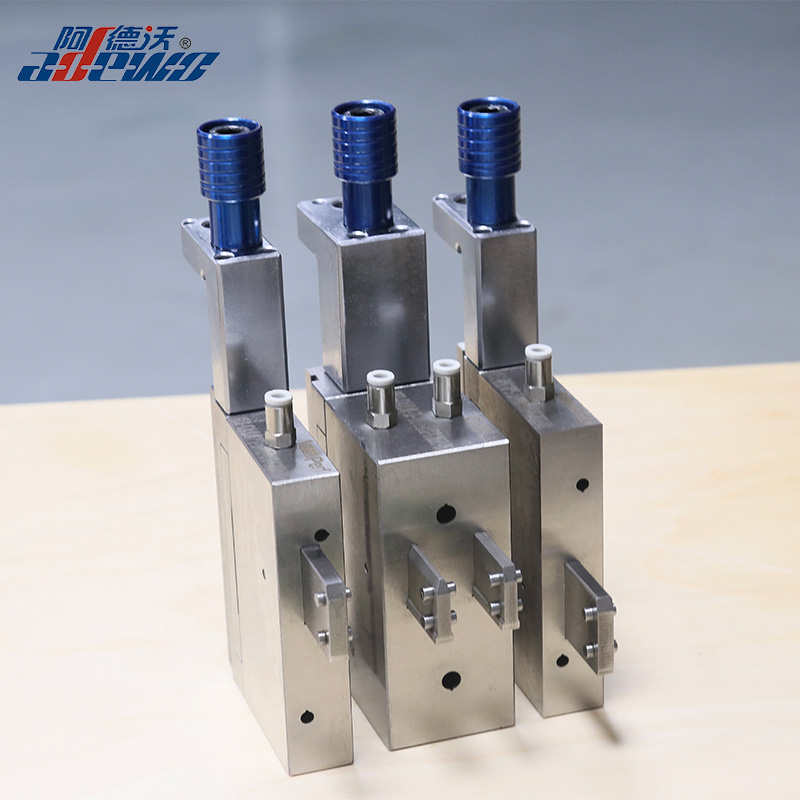

3. Alat pukulan sing dipisahake - ganti karo siji screw.Multi-fungsi kanggo pilihan: Bridge, Lipping, Punch Cut, Perforation utawa Hole.

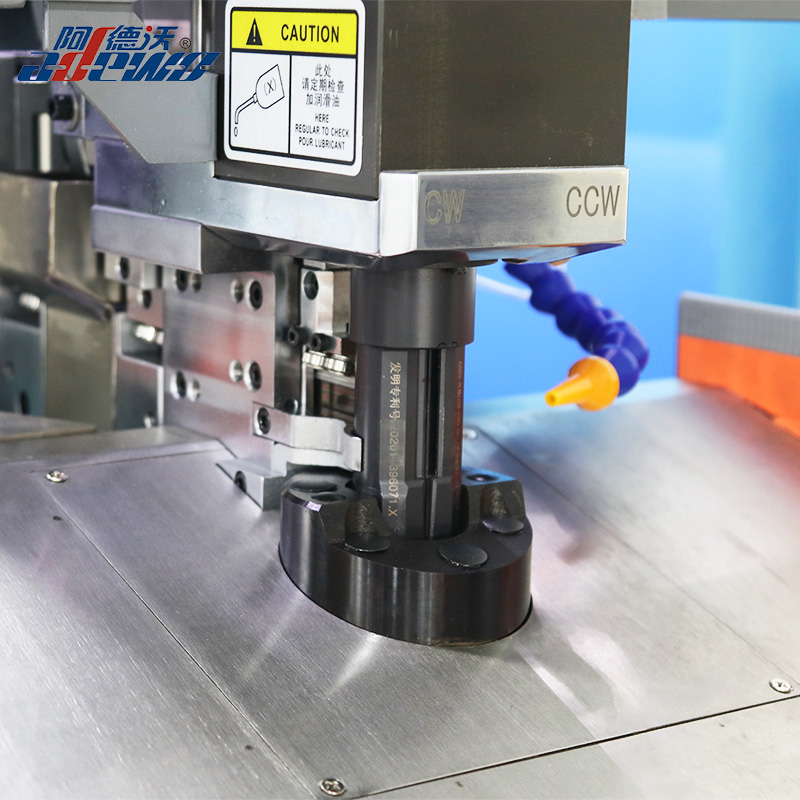

4.Bend & final cut - siji alat (ADEWO Patent). Aman, cara nglereni efisien

5.Lipping & Punch Cut alat - selaras kanggo nglereni bevel aturan lan angle.Achieves akurasi peserta dhuwur.

Parameter Teknis Mesin Bending Otomatis Multi-Fungsi:

Didhukung Aturan Kekandelan	0.45, 0.53, 0.71, 1.05mm
Dhuwur Aturan Didhukung	8-32 mm
Ngarep Min. Ukuran Bending	1,5 mm
Balik Min. Ukuran Bending	1,5 mm
Precision Feeding	± 0,03 mm
Bending Flatness	0,2 mm
Fungsi dhasar	Broaching, Nicking, Bending, Bridge, Lipping, Mould Cut (Punch Cut), Flat Cut
Fungsi Opsional	Perforasi / bolongan
Broaching	Single set Broaching/Double set Broaching bisa dipilih
Format File sing Didhukung	DXF, DWG
Pasokan Udara	0.4-0.8Mpa
Power Supply	AC220V, 13.6A, 50-60Hz
Total Daya	3KW
Sakabèhé Dimensi	26007501600mm (LxWxH)
Bobot Mesin	480KG
KODE HS	8462230000

FAQ:

1.Kang nggawe cutting die cocok kanggo model iki?

Model iki ndhukung aturan kanthi kekandelan saka 0.45mm nganti 1.05mm lan dhuwur saka 8mm nganti 32mm.

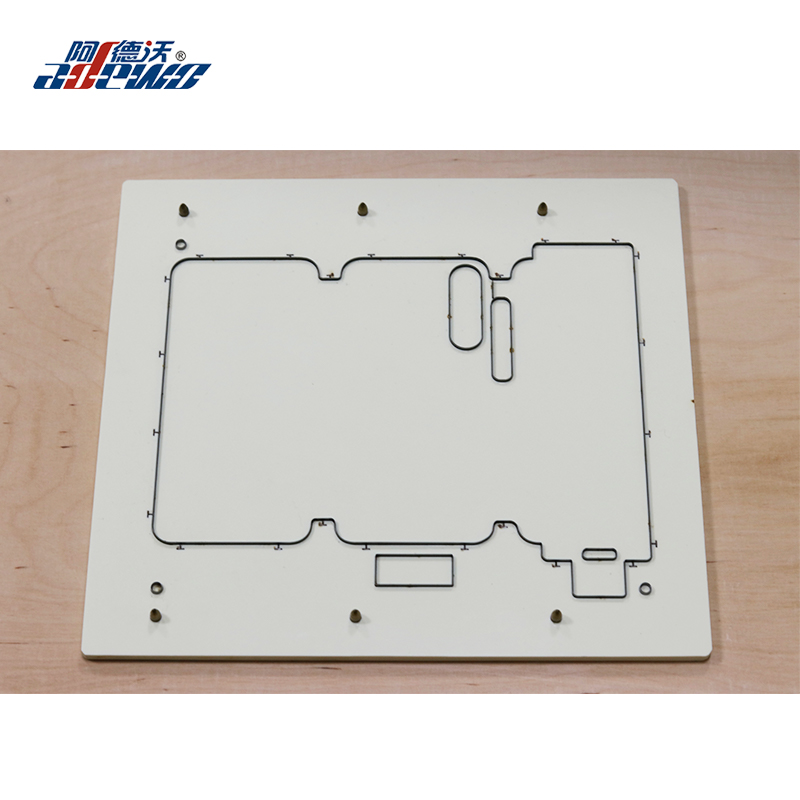

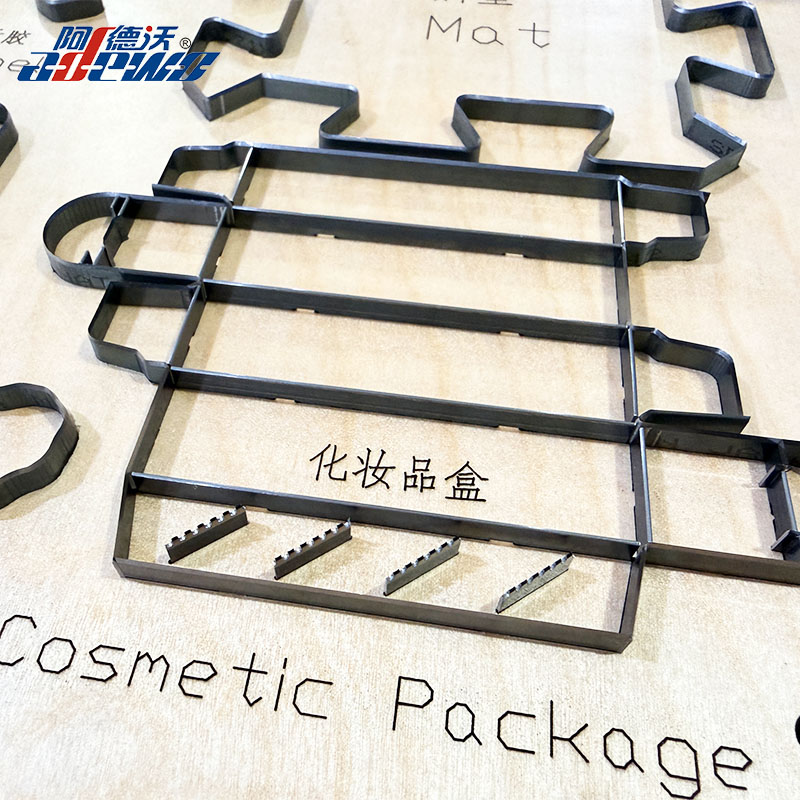

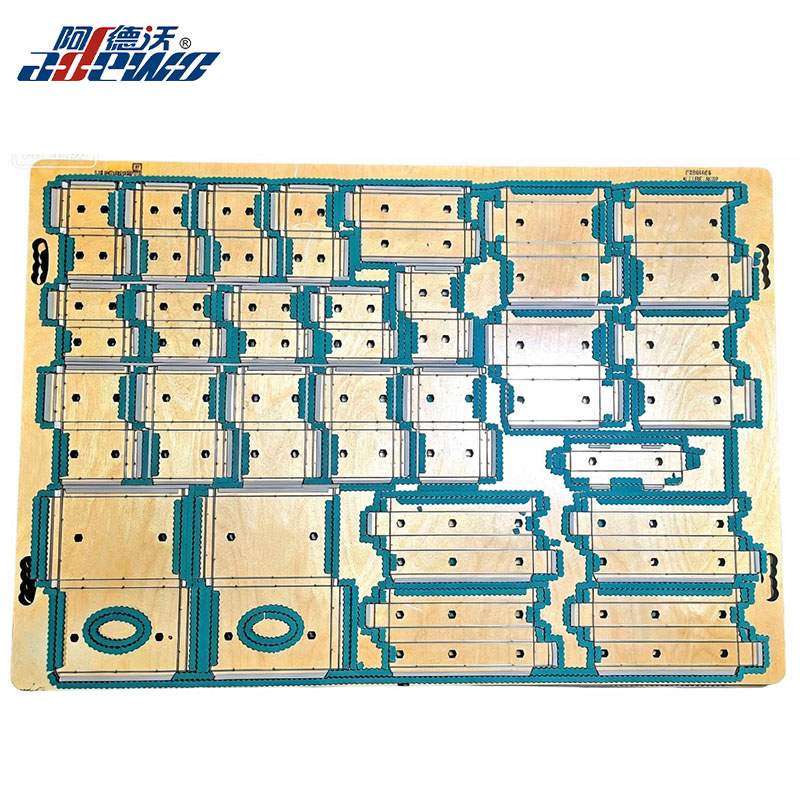

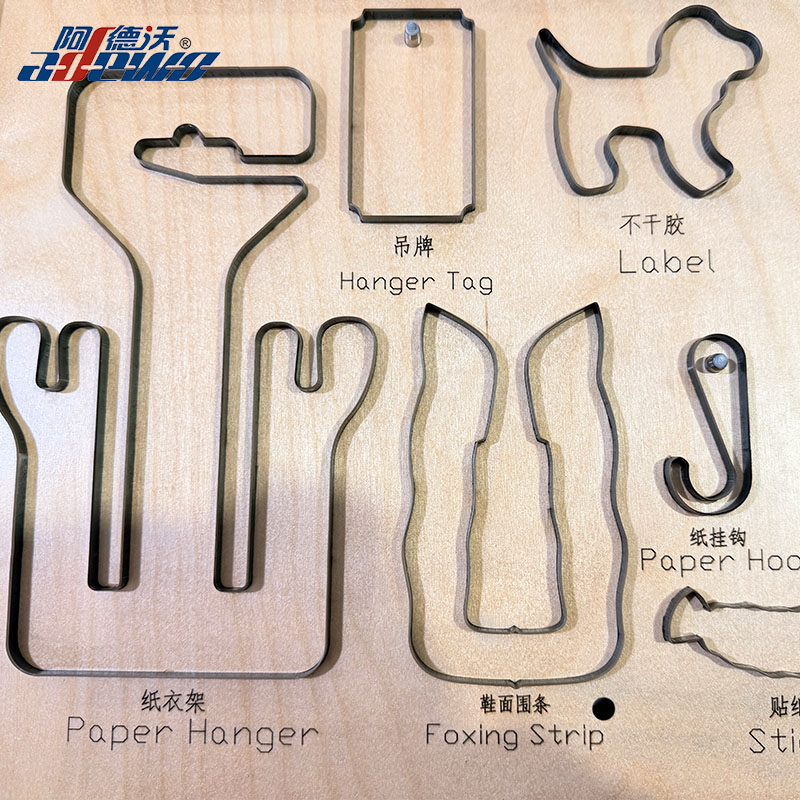

Iku bisa ngasilake mayoritas flat dies -saka kothak kertas standar lan kemasan karton kanggo karton pharmaceutical cut dhuwur mati.

Iki uga kompatibel karo label mati, teka-teki mati, kemasan blister mati, papan elektronik mati, lan liya-liyane.

Yen sampeyan nggoleki Mesin Bending Otomatis sing dilengkapi fitur lengkap kanggo nggedhekake produksi sing nggawe mati saiki, iki minangka model sing cocog kanggo sampeyan!

2. Apa Mold Cut? (Punch Cut)
