(ABM-860B6) Blister Die Cutting Mould Auto Bender karo Inner Nick kalebu fungsi: Mlengkung, Jembatan, Nicking, Perforation, Lipping lan Cutting. Didhukung aturan baja kekandelan 0.71,1.05mm, dhuwur 23.80-60mm. China Adewo duwe loro pabrik ing China, sing spesialisasine ngembangake lan nggawe peralatan nglereni mati kalebu CNC Laser Cutting Machine, Automatic Bender Machine, Creasing Cutting Machine lan liya-liyane ing Industri Kemasan.

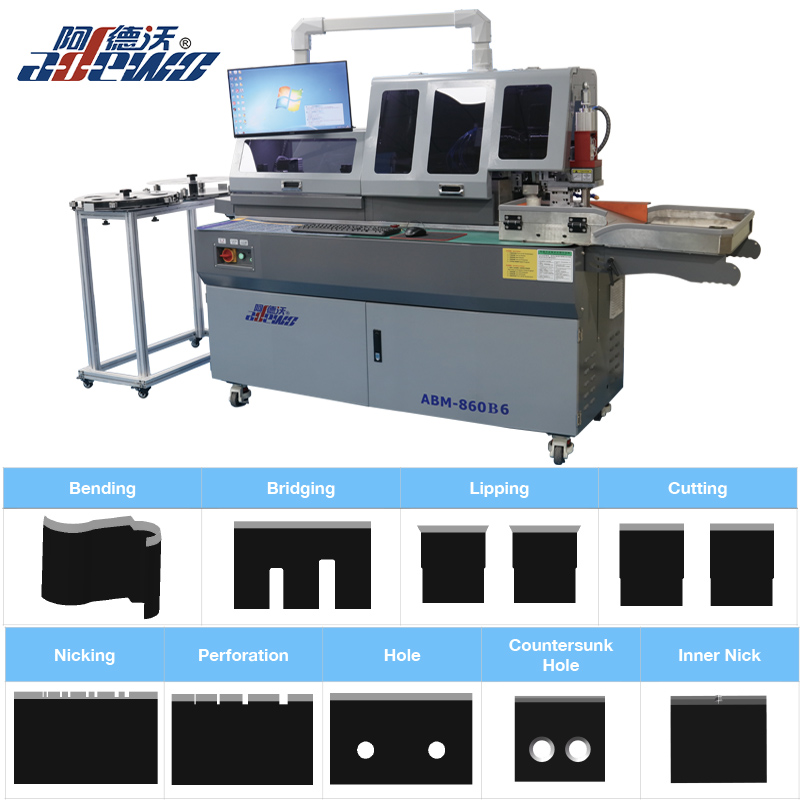

(ABM-860B6) Blister Die Cutting Mould Auto Bender karo Inner Nick
Video Perusahaan Pelanggan On-Site

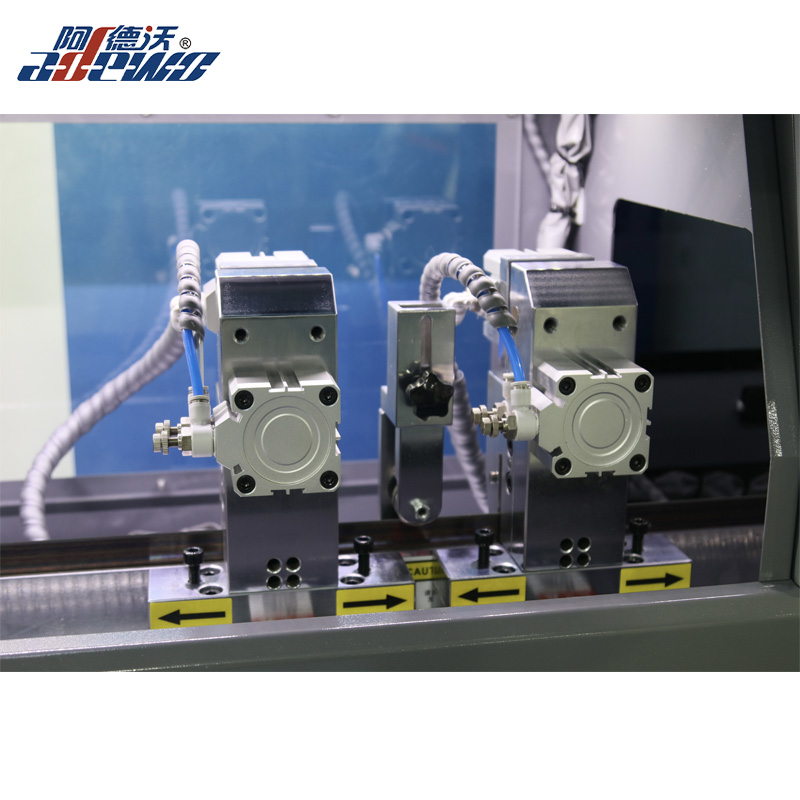

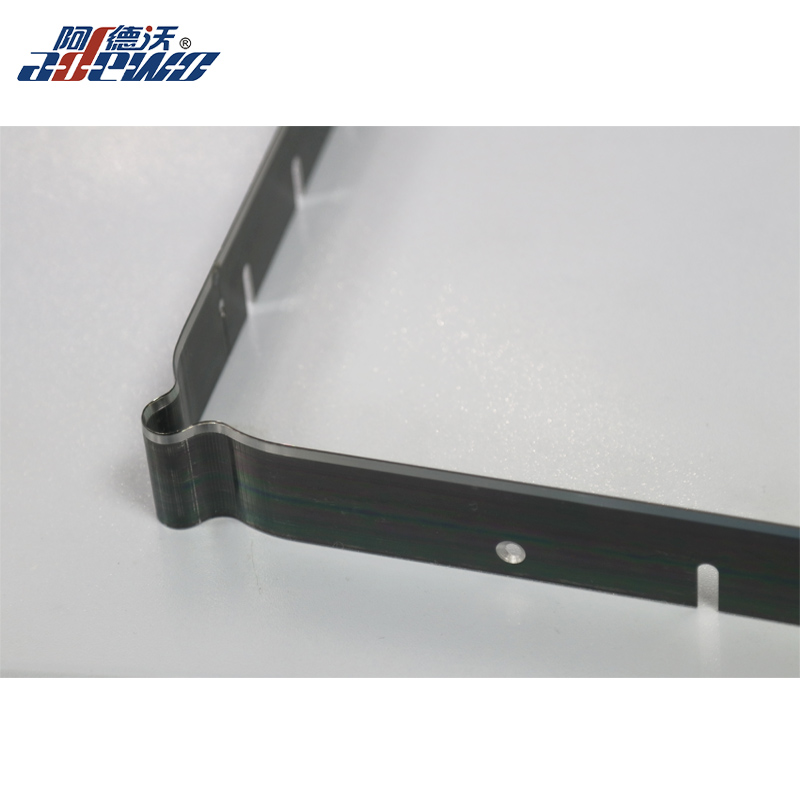

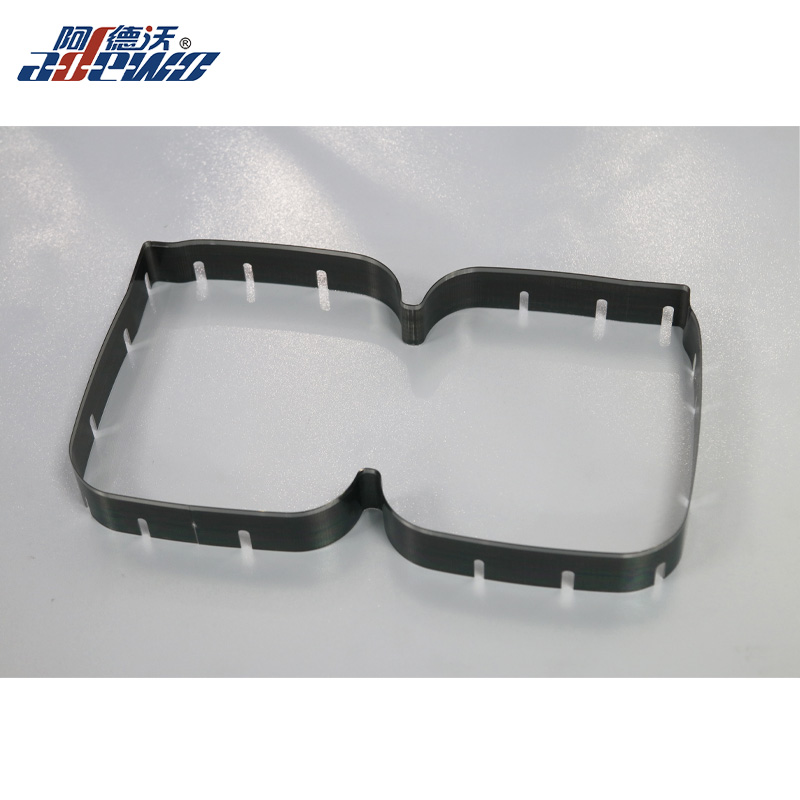

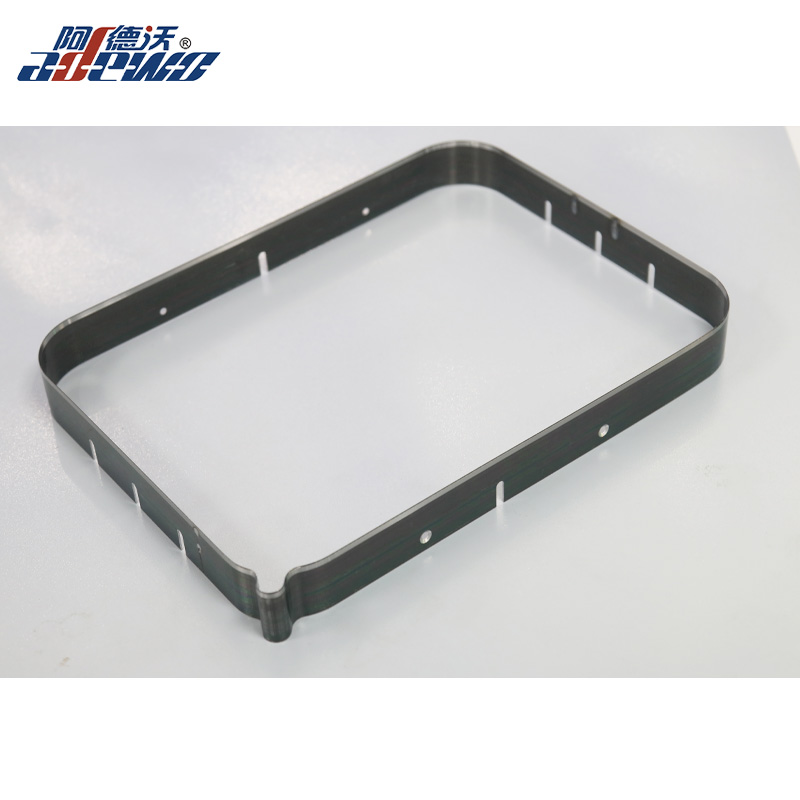

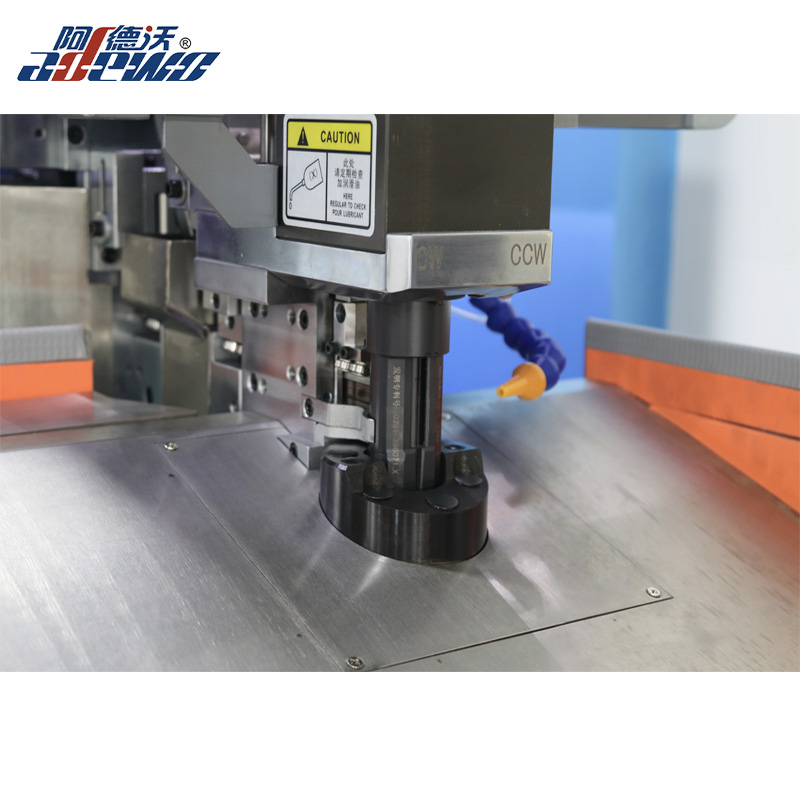

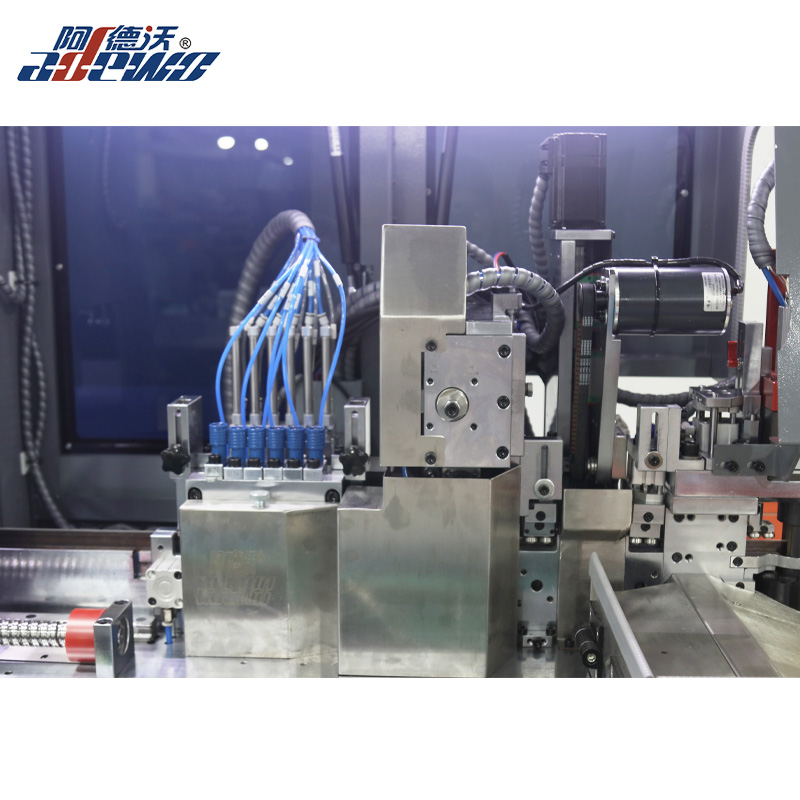

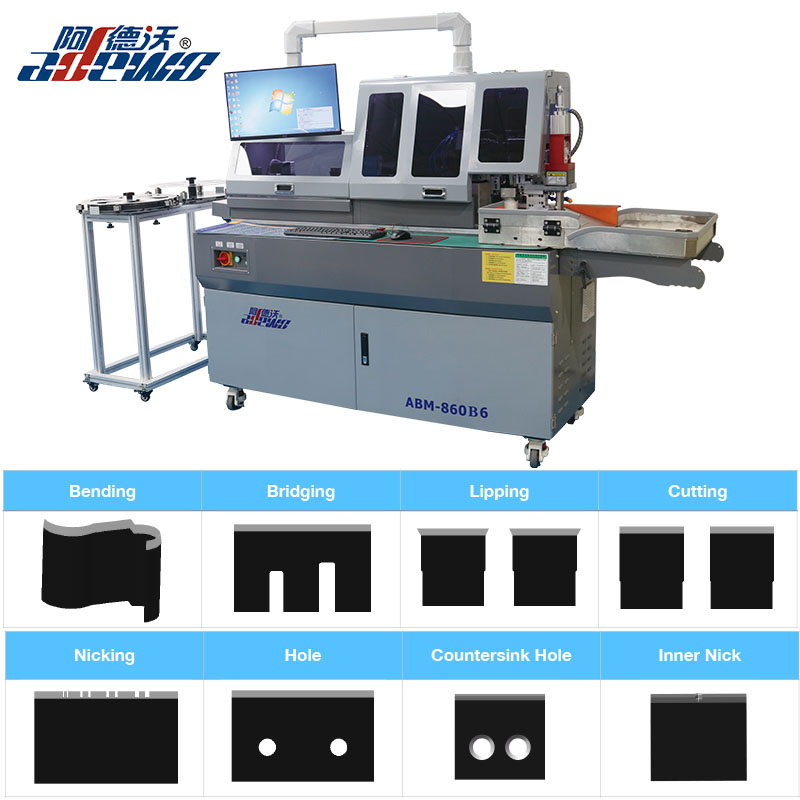

Gambar (ABM-860B6) Blister Die Cutting Mould Auto Bender with Inner Nick kanggo referensi:
1.Bending lan nglereni ing siji, luwih safety saka cutting.High efficiency mlengkung lan nglereni.

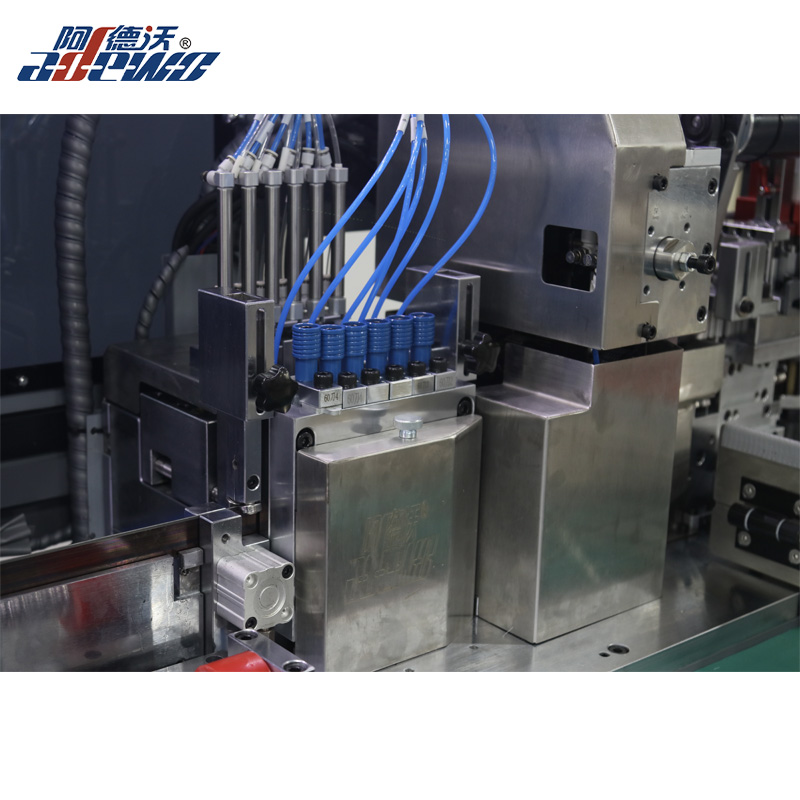

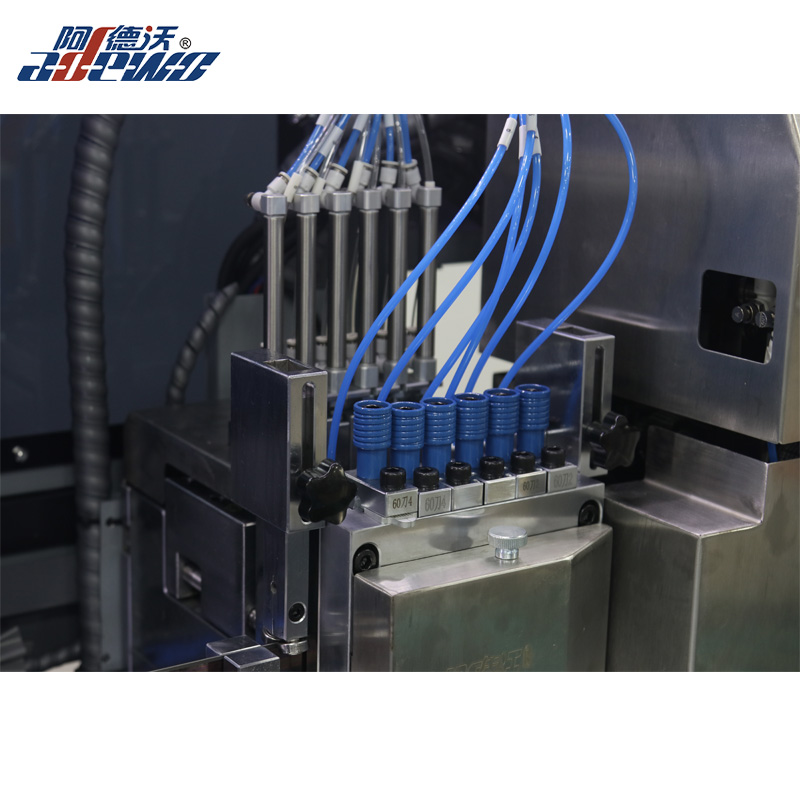

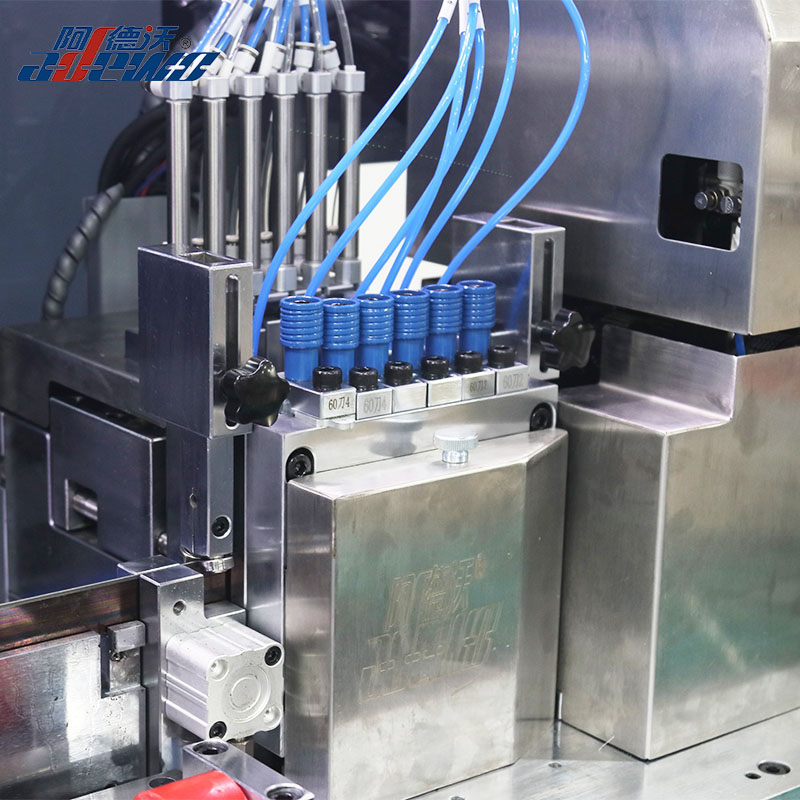

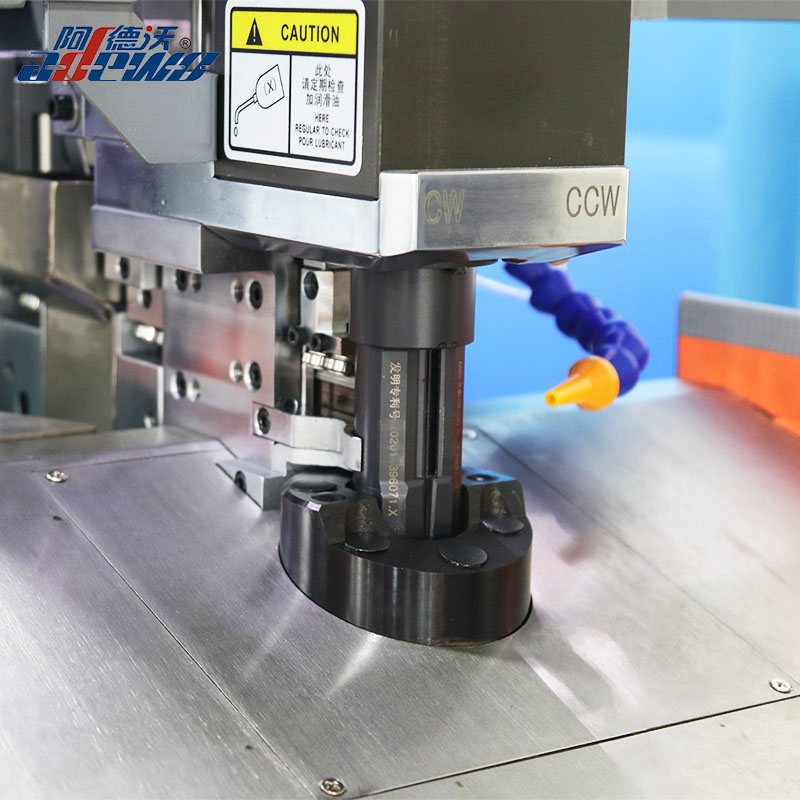

2. Alat Multi-Punch kanggo pilihan: Lipping, Mould Cut, Bridge, Hole utawa Perforation, alat independen, gampang diganti.

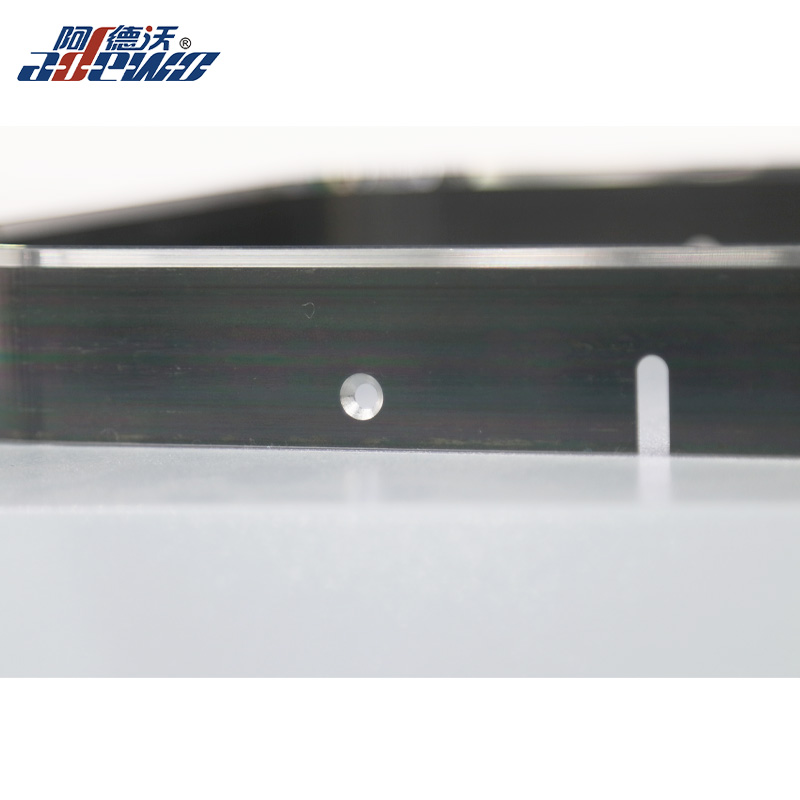

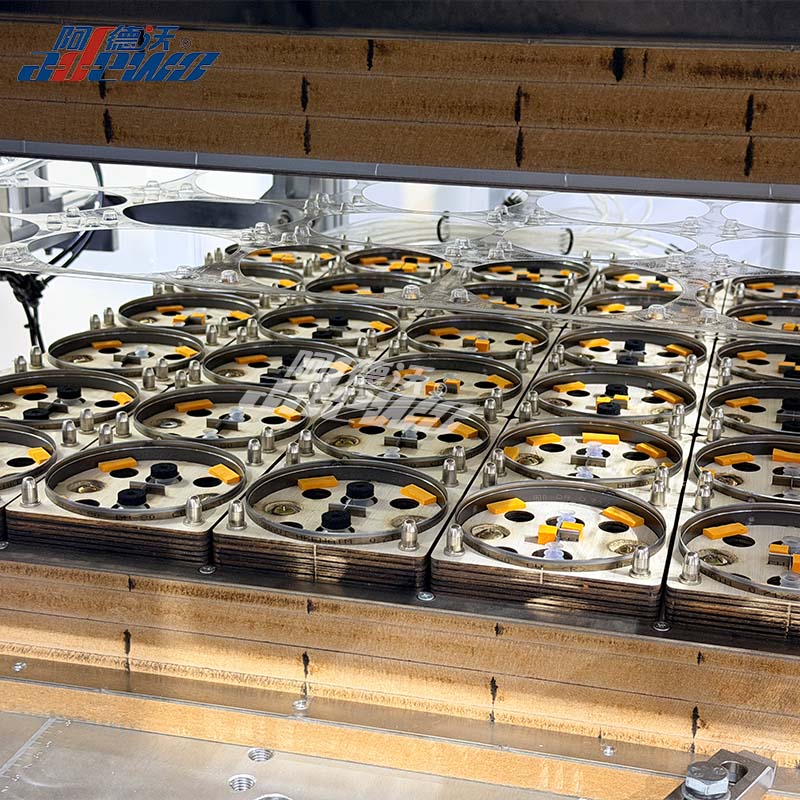

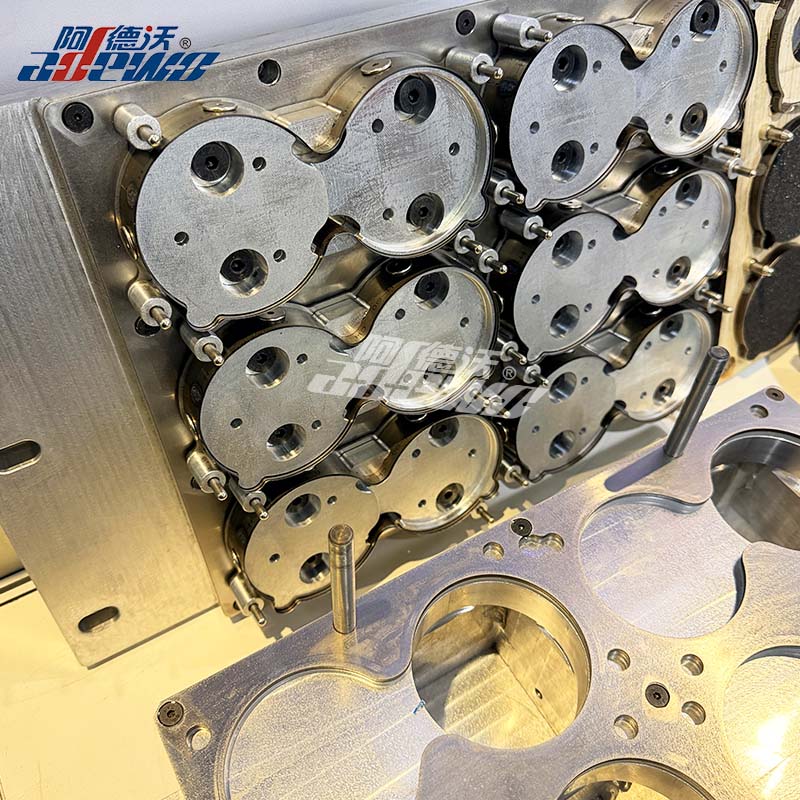

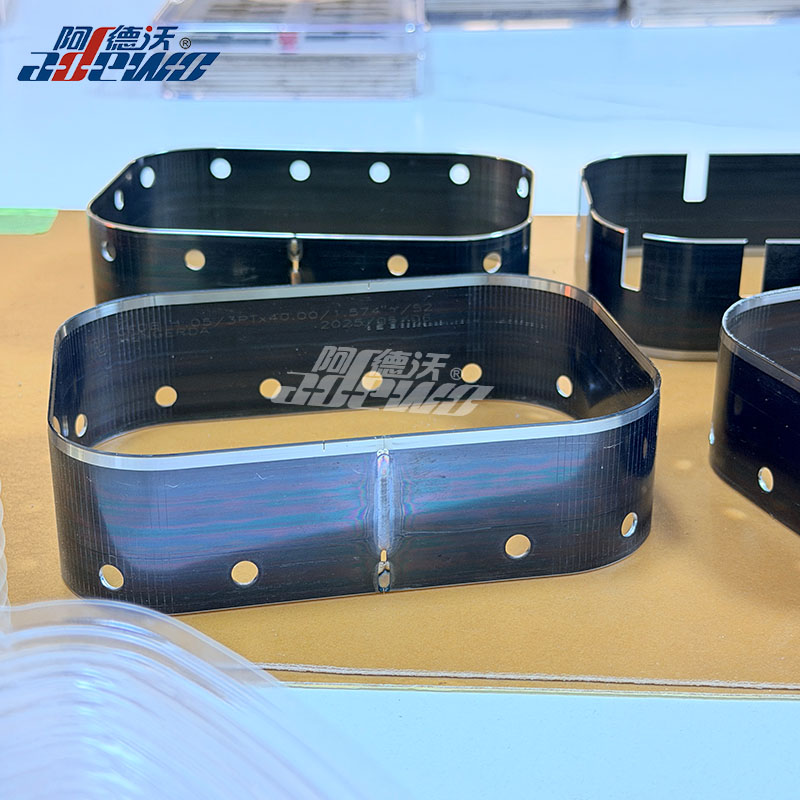

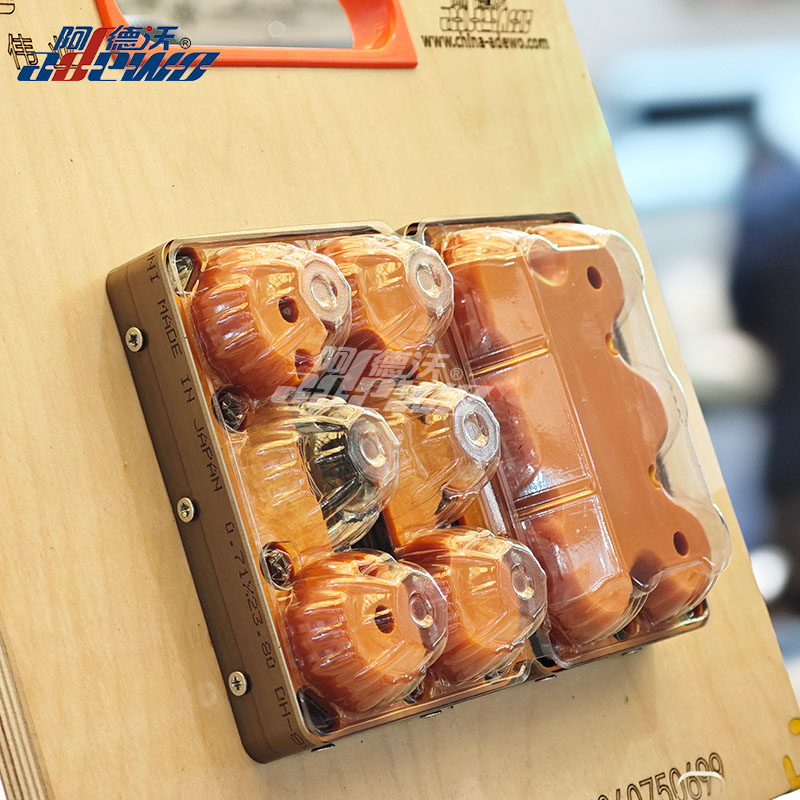

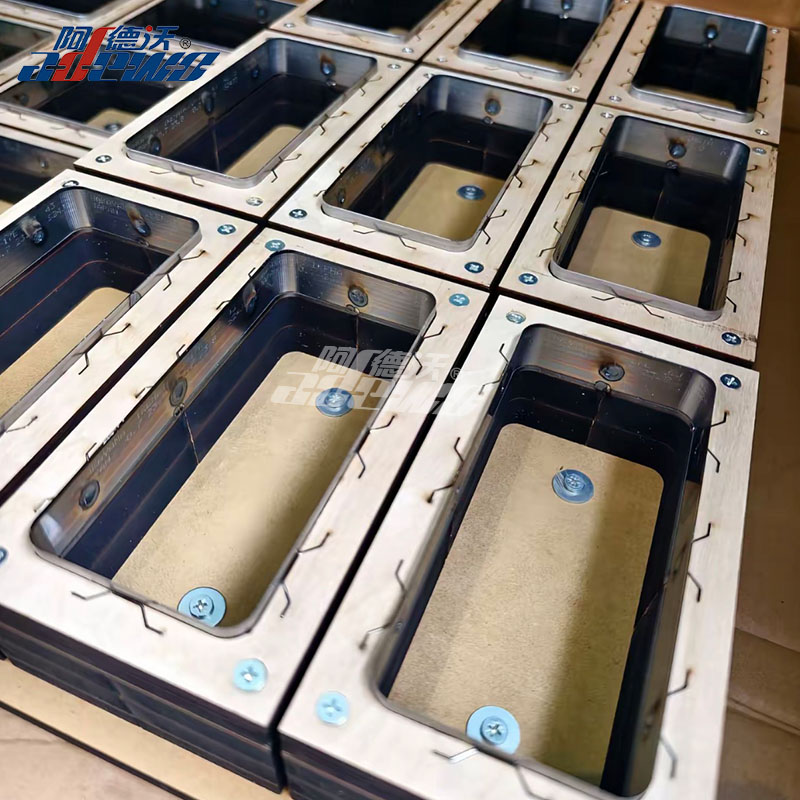

3.Specially dikembangaké kanggo blister mati, thermoforming mati, countersunk bolongan loro-lorone. Minimal Nicking 0.2mm.

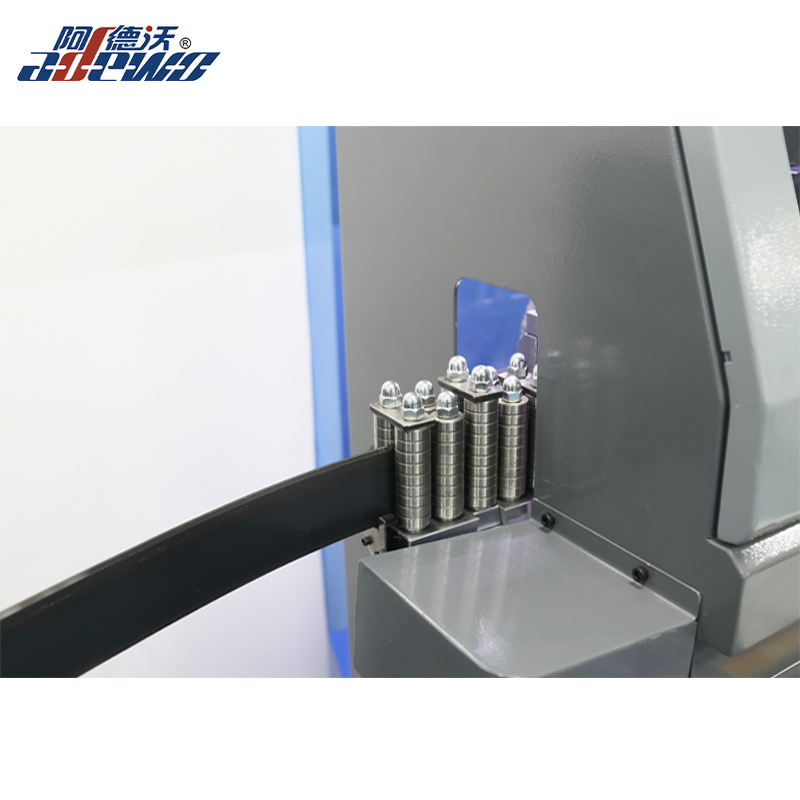

4. Clamps pindho, dipakani guide meneng terus-terusan, mbenakake efficiency karya.
5.Smart lunak, gampang kanggo operate, multi basa kasedhiya.
|
Ketebalan aturan sing didhukung (mm) |
0.71mm & 1.05mm (2pt & 3pt) |
|
Dhuwur aturan sing didhukung (mm) |
23,80-60 mm |
|
Ngarep Min. ukuran mlengkung |
1,5 MM |
|
Balik Min. ukuran nglereni |
1.0 MM |
| Maks. sudut mlengkung | 100° |
|
Presisi feeding |
± 0,03 mm |
|
Bending flatness |
0,2 mm |
|
Fungsi dhasar |
Bending, Bridge, Nicking, Lipping, Cutting, Perforasi, Lubang, Countersun Hole, Inner Nick |
|
Fungsi Opsional |
Perforasi, Lubuk |
|
Format pola optimal |
DXF, DWG, CF2 |
|
Pasokan udara |
0.4-0.8MPa |
|
sumber daya |
AC220V, 13.6A, 50-60Hz |
|
Daya total mesin |
3KW |
|
Bobot |
670KG |
|
Dimensi sakabèhé |
2850x800x1600mm (LxWxH) |
|
H.S. Kode |
8462230000 |
Layanan teknis kita tansah kasedhiya ing services@china-adewo.com
