(ABM-8142A) 2PT 3PT 4PT Steel Rule Auto Bender kalebu fungsi: Mlengkung, Jembatan, Lipping lan Cutting. Didhukung aturan baja kekandelan 2pt, 3pt, 4pt, dhuwur 23.80-60mm. China Adewo duwe loro pabrik ing China, sing spesialisasine ngembangake lan nggawe peralatan nglereni mati kalebu CNC Laser Cutting Machine, Automatic Bender Machine, Creasing Cutting Machine lan liya-liyane ing Industri Kemasan.

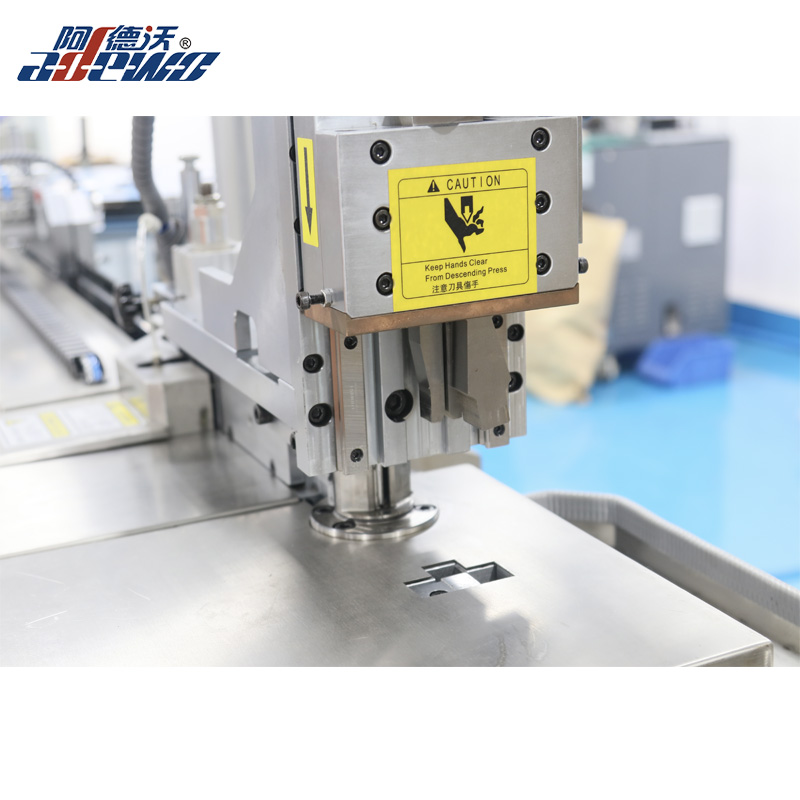

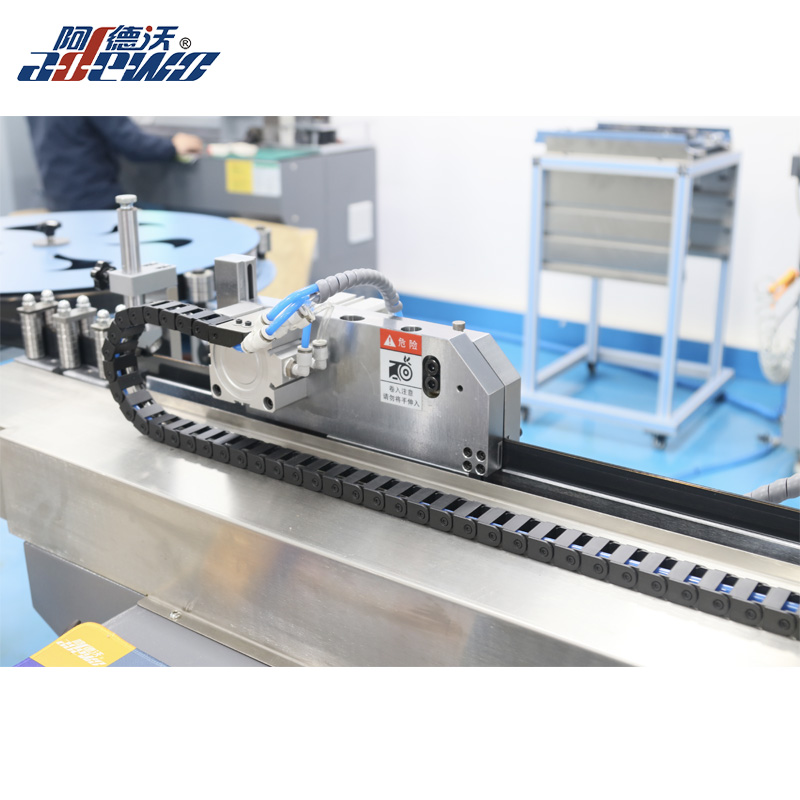

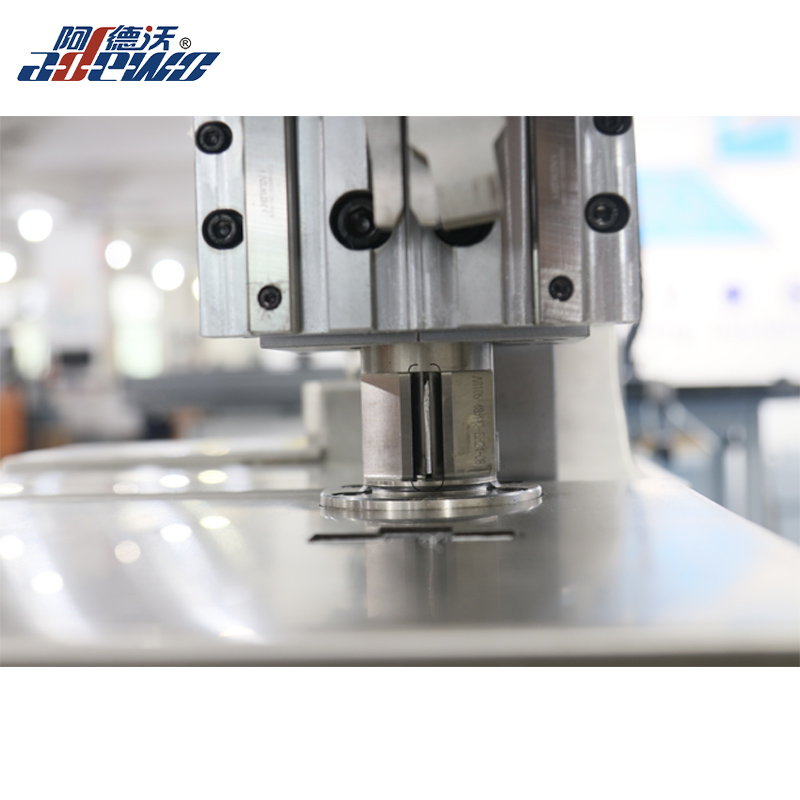

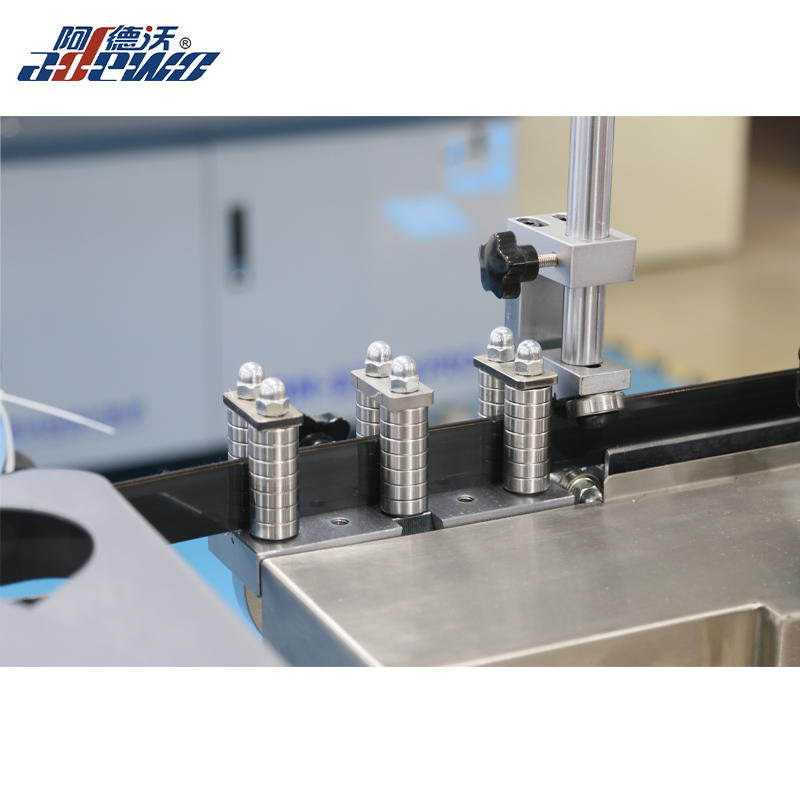

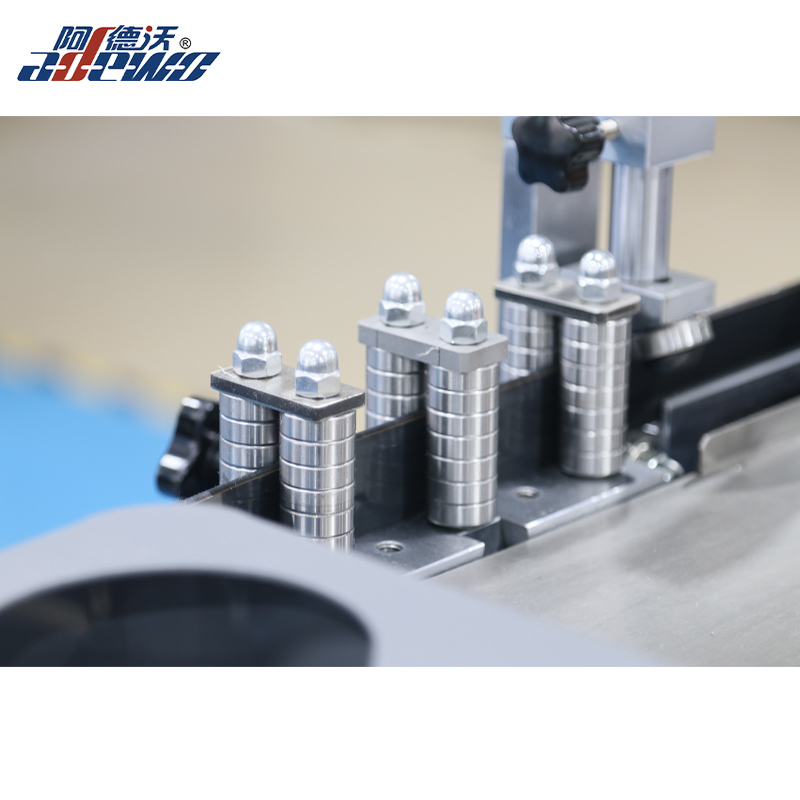

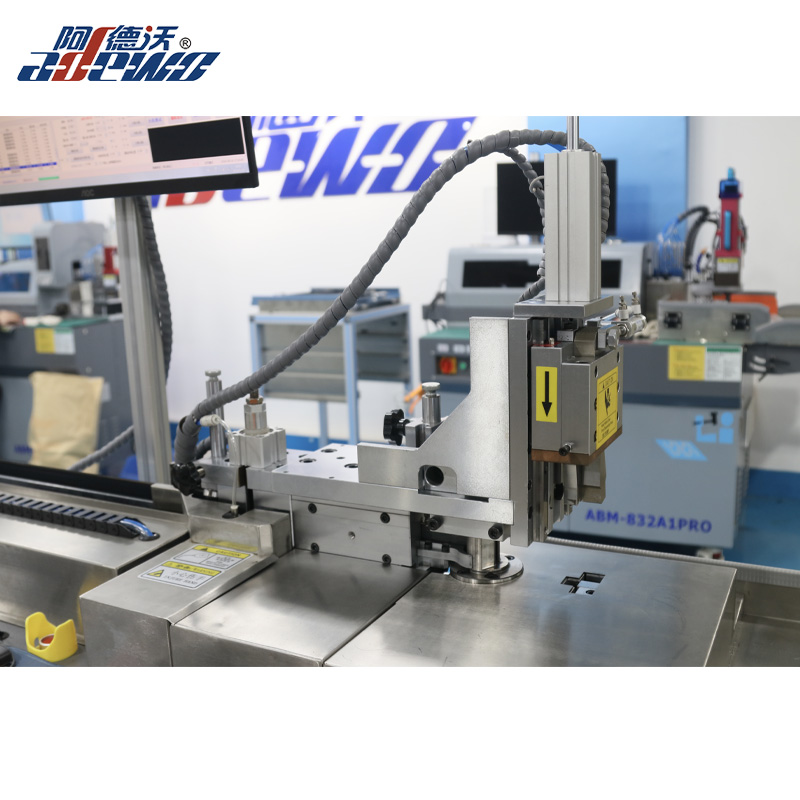

Gambar (ABM-8142A) 2PT 3PT 4PT Steel Rule Auto Bender kanggo referensi:
2. Iki (ABM-8142A) 2PT 3PT 4PT Steel Rule Auto Bender nggunakake sistem motor Servo Panasonic, sistem pakan pandhuan bal-screw sing tepat.
Piranti lunak 3.Smart lan gampang dioperasikake, operasi multi basa;
4. Ngirit wektu produksi lan gampang kanggo die nggawe dening (ABM-8142A) 2PT 3PT 4PT Steel Aturan Auto Bender.
|
Ketebalan aturan sing didhukung (mm) |
0,71,1,05,1,42mm(2pt,3pt,4pt) |
|
Dhuwur aturan sing didhukung (mm) |
23,80-60 mm |
|
Dhuwur jembatan |
13-19 mm |
|
Jembaré jembatan |
Luwih saka 5.5mm ukuran apa wae sing kasedhiya. (bisa disesuaikan) |
|
Min. Radius ARC saka 90 derajat |
± 0,3 MM |
|
Ngarep Min. ukuran mlengkung |
1,5 MM |
|
Balik Min. ukuran nglereni |
1.0 MM |
|
Presisi feeding |
± 0,03 mm |
|
Bending flatness |
± 0,2 mm |
|
Fungsi |
Mlengkung, Bridging, Cutting, Pneumatic Lipping |
|
Cara nglereni |
Puter mati lan otomatis nglereni warata |
|
Format pola optimal |
DXF, DWG |
|
Pasokan udara |
0,4-0,8 mpa |
|
sumber daya |
Fase Tunggal AC220V, 13.6A, 50-60Hz |
|
Daya total mesin |
3KW |
|
Bobot |
458KGS |
|
Dimensi sakabèhé |
2700x1050x1600 (L × W × H) |
|
H.S. Kode |
8462230000 |
Layanan teknis kita tansah kasedhiya ing services@china-adewo.com
